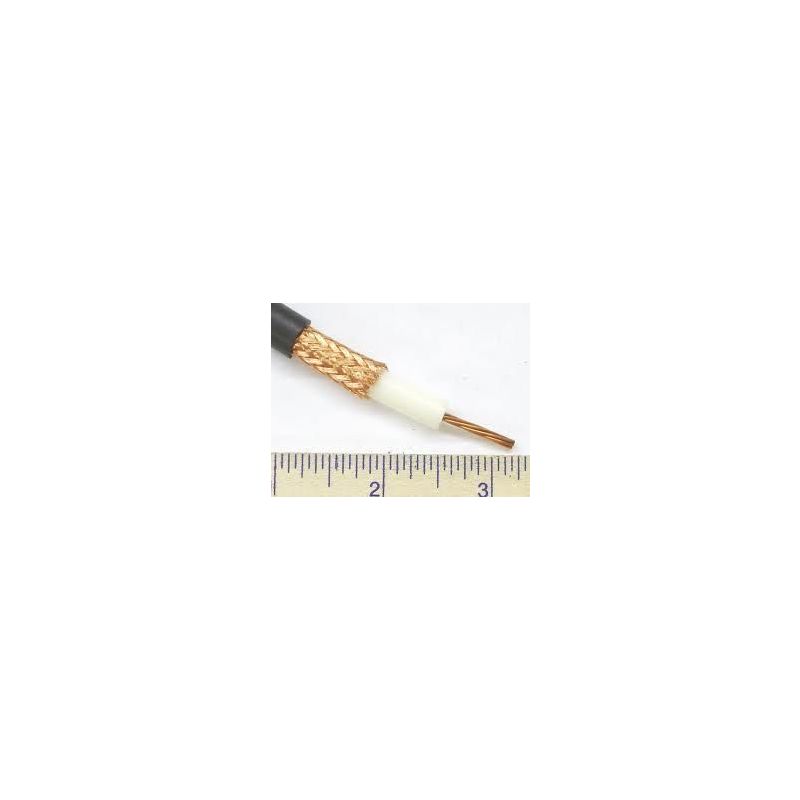

JSC Part Number: 3030
Center Conductor: 13 AWG (7/21) BARE COPPER
Dielectric Insulation & Nominal O.D.: FOAM POLYETHYLENE (.285)
Jacket Material & Nominal O.D.: BLACK VINYL (.405)
Nominal Attenuation:
MHz db/100 FT
50 1.1
100 1.8
200 2.6
400 4.2
900 6.8
Nominal Capacitance (pF/FT): 22.6
Nominal Impedance (OHMS): 57
Nominal Velocity of Propagation: 78%
RG Type: 8/U TYPE
Sheild: 97% BARE COPPER BRAID
UL Listing: Non UL
Sold by the foot or 500' roll
