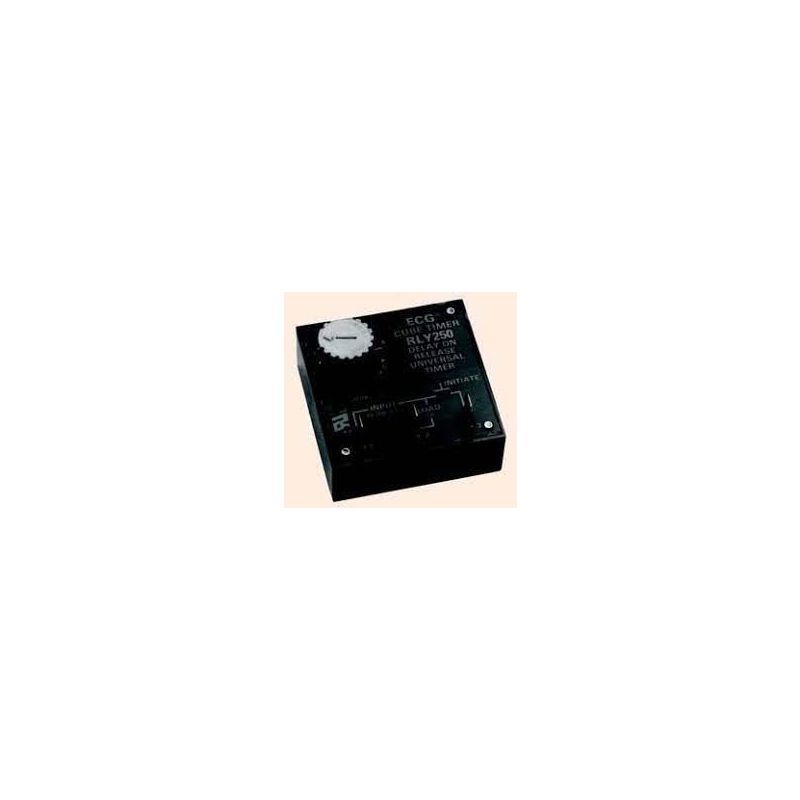

Knob Adjustable, AC,
Delay on Release, Solid State,
Universal Cube Timer.
DELAY ON RELEASE− Input voltage must be applied continuously
to operate the internal relay. When the control switch is closed, the
relay energizes. When the control switch is opened, timing begins.
When timing is complete, the relay will deenergize. Time may be reset
to zero during timing by closing the control switch.
Ratings and Specifications
Input Operating Voltage Range (Line): 19−288 V AC
AC Operating Frequency: 50/60 Hz
Switch Configuration: Solid State, SPST
Switching Current (Load): 40mA Amp min., 1 Amp max.
Timing Adjustment Range: 0.1 to 5 minutes
Repeat Accuracy: ±2%
Reset Time: 100ms Max
Initiate Switch Closure Time: 1.0 seconds min.
Expected Life (Electrical): 100,000,000 operations @ rated load
Operating Temperature: −20° to +65°C
Storage Temperature: −40° to +85°C
Dielectric Breakdown Voltage Between All Elements: 1500Vrms
Transient Protection: 1500 V for 150µs
Mounting: One #8 or #10 Screw
