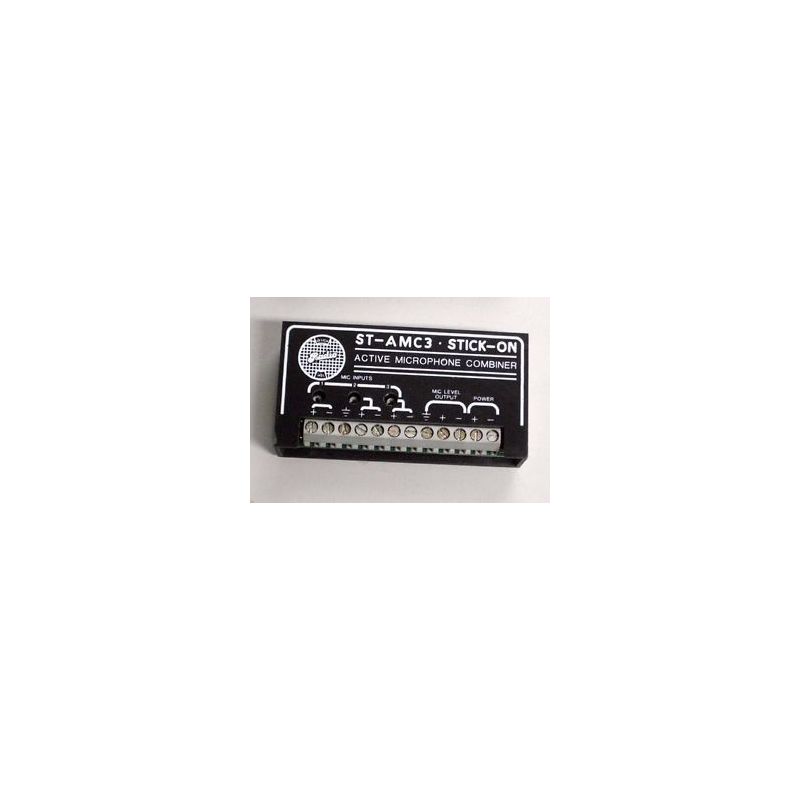

Radio Design Labs ST-AMC3 Stick On Active MIC Combiner W01

ANYWHERE YOU NEED... · To Actively Combine Up To 3 Mics · Microphone Level Summing With Electronic Isolation · Balanced or Unbalanced Mic Combining · To Expand Mic Inputs of Existing Mixer · To Sum Mics of Different Level/Impedance You Need The ST-AMC3! APPLICATION: The ST-AMC3 is part of a group of products in the STICK-ON series from Radio Design Labs. The durable bottom adhesive permits quick, permanent mounting nearly anywhere or it may be used with RDL’s racking accessories. The ST-AMC3 gives you the advantages of an all mic-level audio mixer with a big PLUS...you can put it where you need it! The ST-AMC3 is a utility 3-channel audio mixer for combining mic-level signals to a mic-level output. It can be wired to a mic input on a mic mixer, thereby adding 3 additional mic inputs to an existing mixer. Or it can be used by itself anywhere more than one mic needs to feed a single mic input. Because the ST-AMC3 inputs are electrically isolated, it can be used to combine mics that also feed inputs on other equipment. Individual level control is provided for each input. Each input features a separate input circuit that isolates it from the other inputs. Signals from the three input amplifiers are actively summed and fed to the output mic-level driver amplifier. The mic-input circuit design allows the inputs to accept either balanced low-impedance mics or high-impedance unbalanced mics. The output is capable of driving into either high or low impedance, balanced or unbalanced loads. The output impedance is 150 W. If condenser mics are to be used, the inputs may be adapted for phantom power using RDL’s ST-MPA2 Microphone Phantom Adapter. · Mic levels individually adjustable · Complete isolation between inputs · Ample headroom at operating level · Combine mics of differing impedance or balanced/unbalanced configuration · Output short-circuit protected · Positive connections via barrier block - no audio connectors to wire
