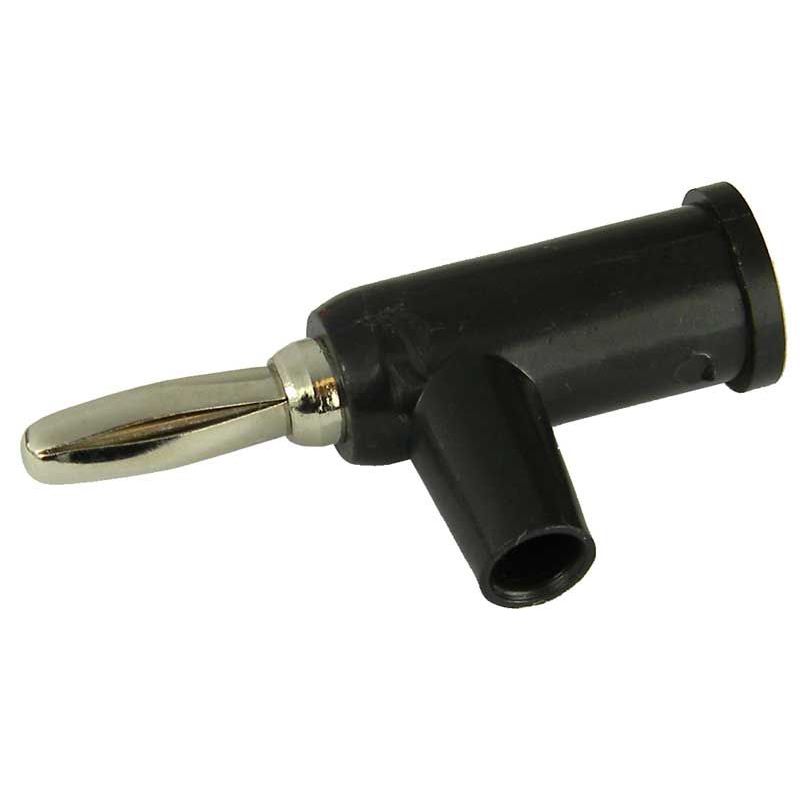

Features
• Designed to fit on the end of any 22
AWG to 18 AWG wire.
• Cross hole wire entry fits wires up to
.12” (3mm) diameter.
• Set screw simplifies assembly of test
leads and jumpers by using a flat
blade screwdriver.
• Fits standard panel and binding post
banana jacks .161” to .166” (4,0mm to
4,2mm) dia
Materials
Set Screw: Steel, Zinc Plated, 8-32 Single Slot
Ratings
Voltage: For CE compliance and for personal safety, do not hold in hand when voltages exceed 33 Vrms/70 Vdc.
Maximum voltage for hands free use in controlled testing environments: 5000 Vrms Max.
Do not use on circuits where transient stresses can exceed the rated voltage.
Current: 15 Amps
Maximum Operating Temperature: +122ºF (+50ºC) max.
