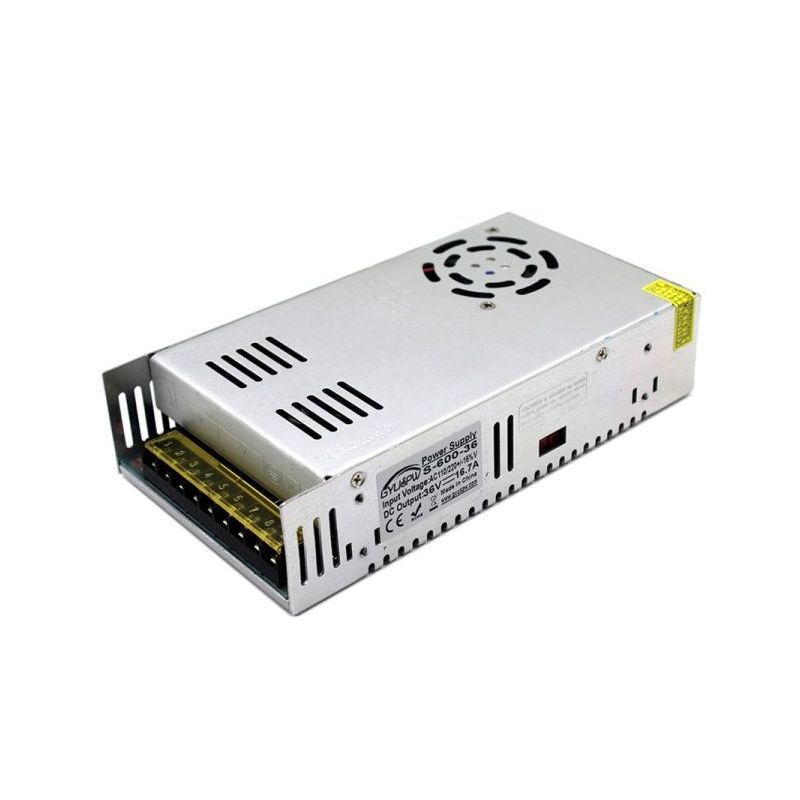

100-240VAC Input, 36VDC 16.7A Output POWER SUPPLY S-600-36, 600W
The aluminum casing is used to enhance heat dissipation and provide the service life of the product.
Input voltage: 110V/220V +/- 1% (100-140V, 180-260V)
Output voltage: DC36V 16.7A
Difference range: +/- 1%
Power: 600W
Output adjustable voltage range: +/- 5%
Frequency: 50-60Hz
Leakage current: less than 1mA / 230V
Temperature coefficient: +/- 0.03%/degree Celsius
Start, rise, hold time: 200ms, 50ms, 20ms
Vibration resistance: 10-500Hz, 2G 10min / 1 cycle, duration 60 minutes, each axis
Protection: overload, overvoltage, overcurrent, short circuit
Pressure resistance Input and output: 1.5KvAC input and shell, 1.5KvAC output and shell, 0.5KvAC
Working temperature and humidity: -10~60 degrees Celsius, 20-90%RH
Storage temperature and humidity: -20~85 degrees Celsius, 10-95%RH
Dimensions: 215 x 115 x 50mm
