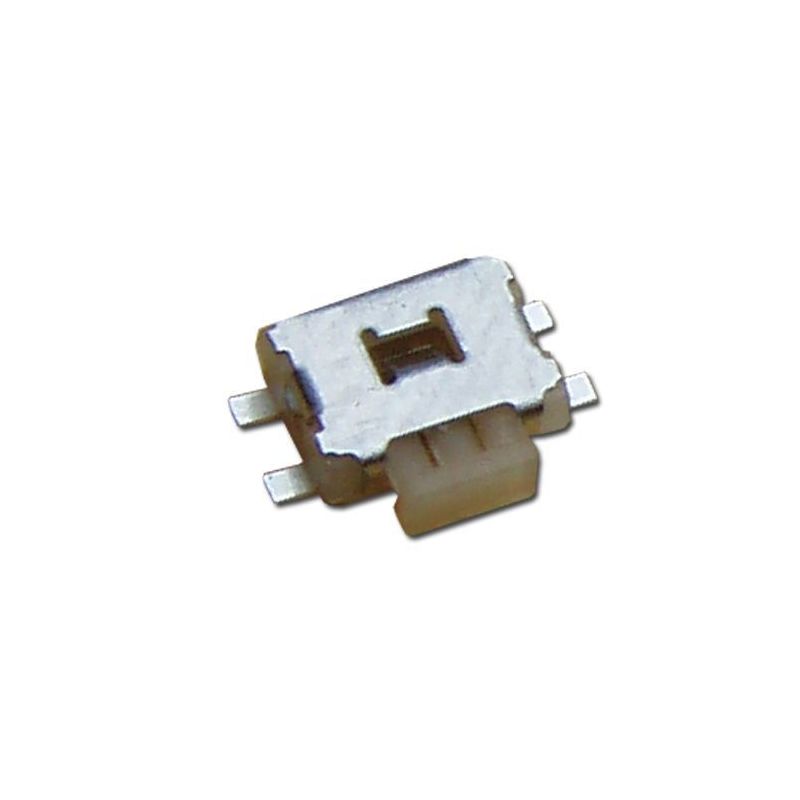

Tact Switch Printed Circuit Tacticle Switch SPST OFF- (ON), Side Actuator, TL1014, Right Angle, SMT Momentary()
Electrical Rating: 50mA @ 12VDC
Life Expectancy:
160 gf: 200,000 cycles
220 gf: 100,000 cycles
Contact Resistance: 100mΩ Max. Initial
Insulation Resistance: 100 MΩ Min. at 500V
Dielectric Strength: 250VAC for 1 min.
Operating/Storage Temperature: -40°C to 85°C
Operating Force: 160 gf, 220 gf
Travel:
160 gf: 0.25mm
220 gf: 0.30mm
Contact Arrangement: SPST
Item# TS8
$2.88
Availability:
In stock
