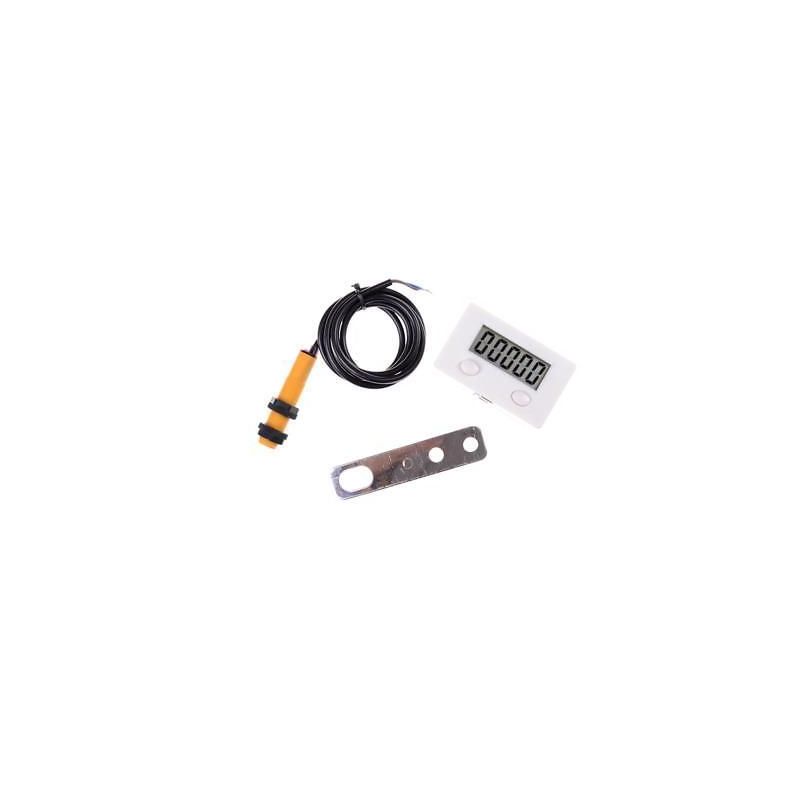

LCD Digital 0-99999 Counter 5 Digit, Proximity Switch Sensor 6-15.5VDC
5 digit
AA 1.5V batteries, no external power supply required
Press the PAUSE key, to Counting pause , press again to restore counting
Input signal and setup is simple, convenient, accurate and reliable
Resetable to zero: panel / external use
Anti-shock case design
Specifications:
Power supply:DC6V-15.5V
Power: 1.5v AA cell(battery included)
Count range: 0----99999
Reset minimum pulse width: 0.1s
Reset method: manual panel/ external
Count the highest frequency: 20hz, or 20 times/s
Working temperature: - 5--40C
The counting minmum pulse width:10ms
Promixity switch sensor: 2 wires, Length: 110mm, come with magnet
Detecting distance: 3-10mm
Size: 63 x 38 x 30 mm
Hole size: 61 x 36 mm
Maximum resistance when connect point on: ≤ 10KΩ
Minimum resistance when connect point off: ≥ 500KΩ
Net Weight: 0.05kg
