Digital LCD Time Delay Relay Module Power Off Trigger Cycle Timing Circuit Switch DC 6-30V 30A One-way Control Board W11

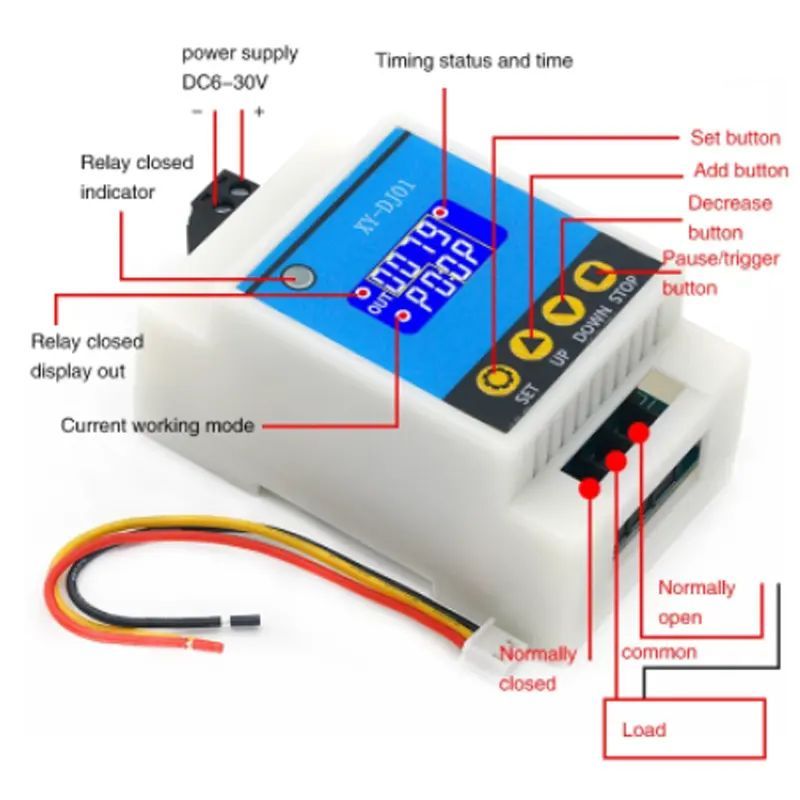

Digital Display 1-Way Relay Module Delay Power Off The XY-DJ01 is a 1-way digital display relay module with delay power off disconnection, and trigger delay cycle, timing circuit switch. With a LCD display, the current mode and parameters are clear at a glance. 1. Support button trigger control, high and low level trigger, switch value control, support NPN, PNP sensor access, suitable for most applications. 2. Wide voltage power supply (6~30V), din rail installation mounting, a key pause function, with reverse connection polarity protection. 3. Added sleep mode, enabled after 5 minutes, the LCD backlight will be automatically turned off; any button will wake up; 4. Different OP, CL, LOP parameters can be set, these parameters are independent of each other and saved separately; 5. Working voltage: 6-30V power supply 6. Trigger signal source: high level trigger (3.0V~24V), low level trigger (0.0V~0.2V), switch control (passive switch). 7. Output capacity: can control equipment within DC 30v 30A or AC 220v 30A 8. Quiescent current: 15mA Working current: 50-130mA 9. Service life: 100,000 x ; working temperature: -40-85℃; 10. Optocoupler isolation, enhanced anti-interference ability, industrial grade circuit board, set parameters are memorized after power off. 11. Timing range: 0.01 second (small) to 9999 minutes (large) continuously adjustable Dimensions: 9.8x5.5x5.5CM Relay module with 10 operation modes. Instructions and LCD Display Information: 1. Display shows 4 parameters: • Time information: 0.01sec ~ 9999min • Program mode selected: P0 to P9 • Program State (OP - means time to OPen the relay / CL - means time to CLose the relay • LP - means the number of cycles for the program Loop) • Relay state (when display show OUT means relay is ON) no information left side of the display relay is OFF. If OUT is blinking means that the program is running but the relay as no action. 2. Trigger mode: high and low level. 3. Power supply: 6~30VDC. 4. Stop button to provides a stop function. 5. 5 minutes without any operation the board goes into low-power state. Any action trigger the wake up. 6. OP/CL/LP parameters can be modified individually 7. All parameters are automatically saved by power off.
