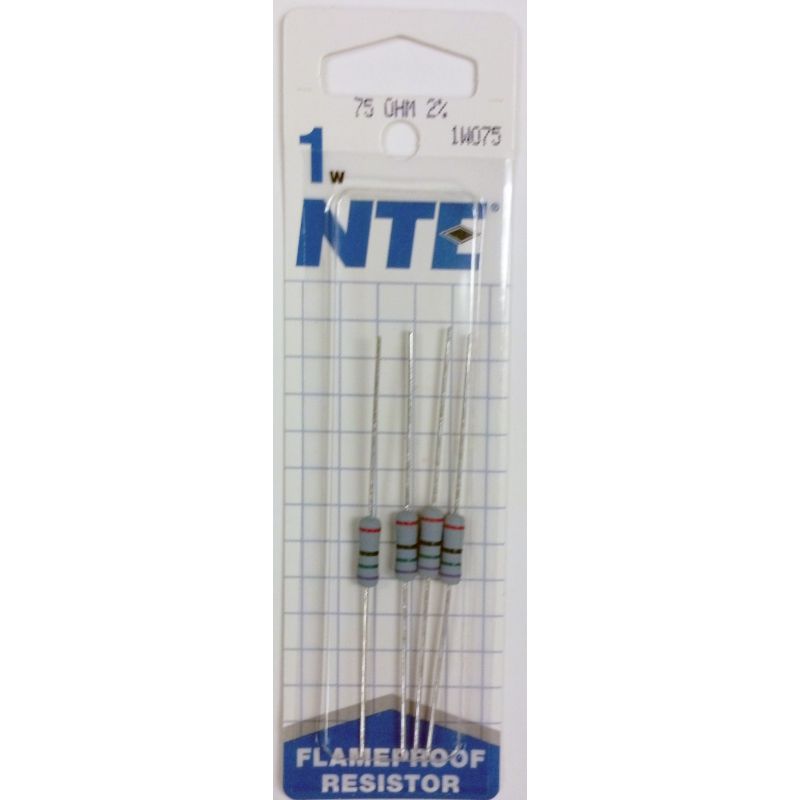

1 Watt Metal Resistors
1W Series
Specifications
| NTE Number | Resistance Range (Ohms) | Tolerance (%) | Voltage (Volts) | Operating Temperature (Topr) | Temperature Coefficient (PPM/°C) |
| 1WD10 to1W9D1 | 0.10 to 9.1 | 5 | 350 | −55° to +200°C (Note) | 200 |
| 1W010 to 1W510 | 10 to 1M | 2 | 500 | −55° to +200°C | 200 |
| 1W511 to 1W622 | 1.1M to 22M | 2 | 350 | −55° to +200°C | 200 |
Note: For values less than 0.2Ω, the Operating Temperature is −55° to +155°C.
Mechanical Dimensions* = Inches(mm)
| NTE Number | Body Length (L) | Body Diameter (D) | Lead Diameter (d) | Lead Length (LL) |
| 1WD10 to 1W9D1 | 0.425 (10.8) | 0.155 (3.9) | 0.027 (0.7) | 1.375 (35) |
| 1W010 to 1W510 | 0.440 (11.8) | 0.157 (4.0) | 0.032 (0.83) | 1.18 (30) |
| 1W511 to1W622 | 0.425 (10.8) | 0.155 (3.9) | 0.027 (0.7) | 1.375 (35) |
* These dimensions are for reference only.
