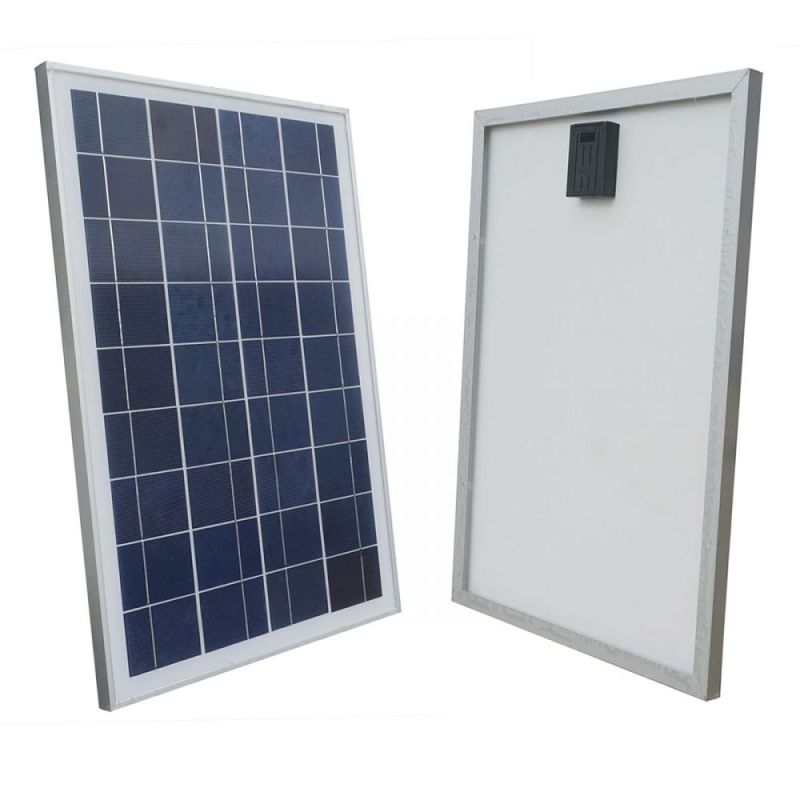

12VDC 100W WATT Polycrystalline SOLAR PANEL

12VDC 100W WATT Polycrystalline SOLAR PANEL


Quick Overview

Item# P100
100W 12V Polycrystalline Solar Panel
Solar panel is compose of multi-crystal solar cell with an efficiency of over 17%. Rigid solar panels are constructed using a tempered glass front, EVA pottant and a PVF backing to provide maximum protection from the most severe environmental conditions. The entire laminate is framed in a heavy duty anodized aluminum frame to provide structural strength and ease of installation. This translates to both more wattage per square foot and lower mounting structure cost.

Ideal Daily Output: 5KW (depending on the availability of sunlight)
Basic component for on-grid, off-grid solar panel system, caravan, RV, boat, Green house solar panel system
Easy Installation with pre-drilled hole. each solar panel comes with 90cm 12awg cable with MC4 Male/Female quick connectors
By-Pass Diode minimized the impact of shade.
Waterproof IP-65 Rated Junction Box : Advanced water and dust proof level (complete protection against environmental particles and low pressure water jets).
Resistance to Salt Corrosion and Humidity
Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa), Lightweight anodized aluminum frame and reinforced Safety and anti-Reflection coated glass 3.2mm thick (tempered + patterned)Specification
Rated power 100w
Voc 14.1
Vop 11.7V
Short circuit current (Isc) 6.1A
Working current (Iop) 5.56A
Output Tolerance ±3%
Temperate coefficient of Isc (010+/- 0.01 )%/ ℃
Temperate coefficient of Voc - (0.38 +/-0.01 )%/ ℃
Temperate coefficient of power Voc -0.47%/℃
Temperature range -40℃to +80℃
Frame Heavy duty aluminum
Kind of glass and its thickness Low Iron, high transparency tempered glass of 3.2mm
SLA Battery Voltage 12V
Dimensions (L x W x H)mm 675*996*35mm(27x39.5x1.37 in)
Weight 24lbs(11KG)

Weight (lbs.) 18.0000
