12VDC 10W WATT Polycrystalline SOLAR PANEL

12VDC 10W WATT Polycrystalline SOLAR PANEL

12VDC 100W WATT Polycrystalline SOLAR PANEL

12VDC 100W WATT Polycrystalline SOLAR PANEL

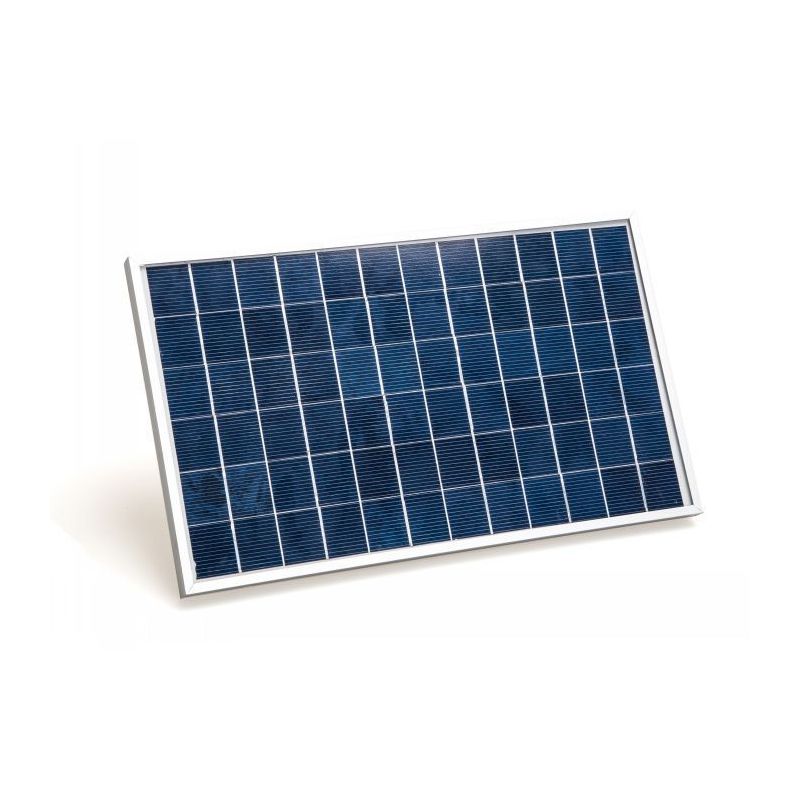

12VDC 20W WATT Polycrystalline SOLAR PANEL

Widely used on small dry camp and off-grid lighting applications Easy Installation with pre-drilled hole. Waterproof IP-65 Rated Junction Box : Advanced water and dust proof level (complete protection against environmental particles and low pressure water jets). Resistance to Salt Corrosion and Humidity Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa), Lightweight anodized aluminum frame and reinforced Safety and anti-Reflection coated glass 3.2mm thick (tempered + patterned) Specifcation Reted power 20W Voc 21.6V Vop 18V Short circuit current (Isc) 1.22A Working current (Iop) 1.11A Output Tolerance ±3% Temperate coefficient of Isc (010+/- 0.01 )%/ ℃ Temperate coefficient of Voc - (0.38 +/-0.01 )%/ ℃ Temperate coefficient of power Voc -0.47%/℃ Temperature range -40℃to +80℃ Frame Heavy duty aluminum Connection waterproof junction box, can be customized Glass and its thickness Low Iron, high transparency tempered glass of 3.2mm SLA Battery Voltage 12V Dimensions (L x W x H)mm 525 *370 * 18(20.67*14.57*0.71in) Net Weight 1.7Kgs(3.75lbs)
Item# P20N
$89.00
Availability: In stock
