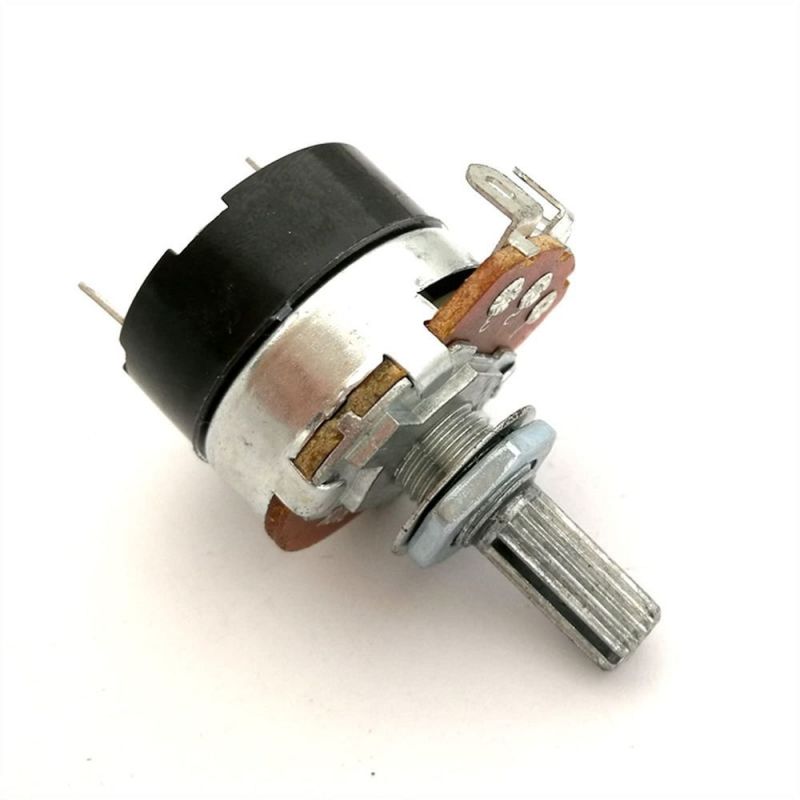

POTENTIOMETER with SWITCH 5K 2W, SPST, LINEAR, 1/4 Inch Fluted Spline Shaft
10K ohm Audio Taper Pot Potentiometer Control, With SPST Switch 5A at 125VAC and Loudness Tap 1/4 inch diameter x 3/4 inch long half shaft. P.R. Mallory
POTENTIOMETER with SWITCH 10K 2W, SPST, LINEAR, 1/4 Inch Fluted Spline Shaft
Specifications:
With Switch SPST
Potentiometer Linear
Power Max 2W
Single Turn
Resistance 0 to 10K Ohm
Mounting 5/16" Hole
0.10 x 0.06" Anti-Slip Pin 0.437 from center
0.275" Thread Length
M7-0.75mm Thread
Connections Solder
Shaft Knurled, 18 Tooth, Slotted
6mm Outside Diameter
0.485" Length
Washer 0.015" Thickness
0.54" Outside Diameter
Nut 0.085" Thickness
9/16" Outside Diameter
