DISCONTINUED HANDHELD OSCILLOSCOPE 12MHz BANDWIDTH

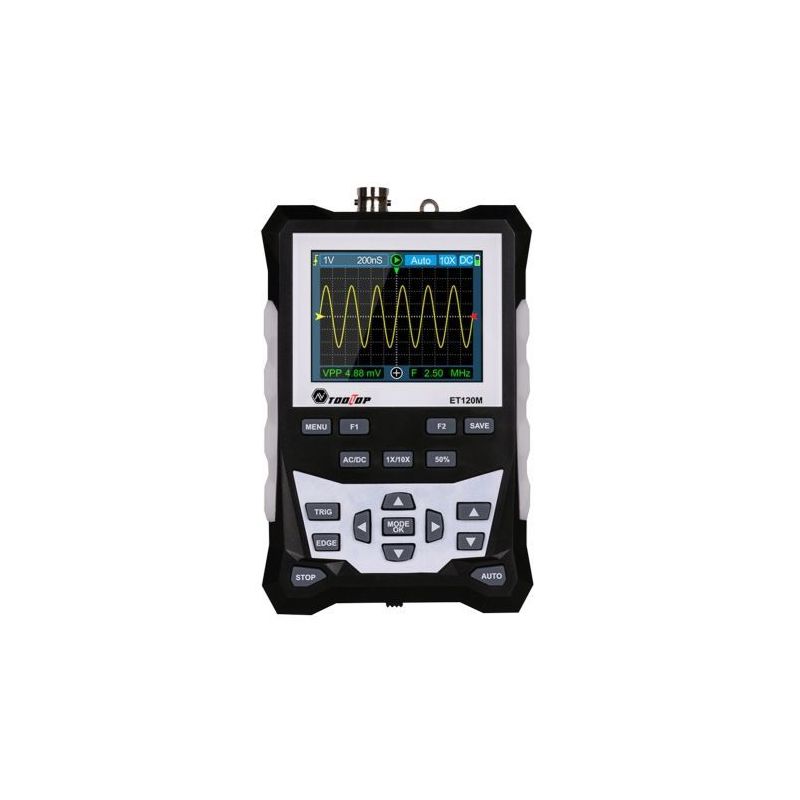

120MHz Digital Color Oscilloscope
Material: ABS
Screen: 320 x 240 LCD screen
Display area: 50mm x 40mm
Backlight: White, 8-levels of brightness
Impedance: 1X-1Mohm/ 10X-10Mohm
Battery: Lithium battery
Automatic shutdown: no operation for 15 minutes
Save: 2500 DSO waveforms
Dimensions: 124 x 80 x 35 (mm)
Weight: about 180g
Use conditions: 0 to +40 degrees Celsius; less than 75%RH
Waveform bandwidth: 120MHz
Number of channels: 1
Voltage: 1X: 80 Vpp 10X: 800 Vpp
Coupling: DC/AC
Signal output: 1KH, 10KHz, 100KH+z, 1MHz
Voltage accuracy: 10%
Frequency accuracy: 1%
Storage depth: 12.8div
Input impedance: 1MΩ
Vertical sensitivity: 50mV~100v
Time base range: 6nS~50S
Trigger Mode: Auto/Normal/Single
Trigger slope: rise/fall
Charging: DC5V/1A/2A
Sampling rate: 500MSps (MAX)
Automatic measurement function: Vpp, Vrms, Vavg, Vp, Vmax, Vmin, F, T, T+, T-, Du+, Du-
Item# ET120M
