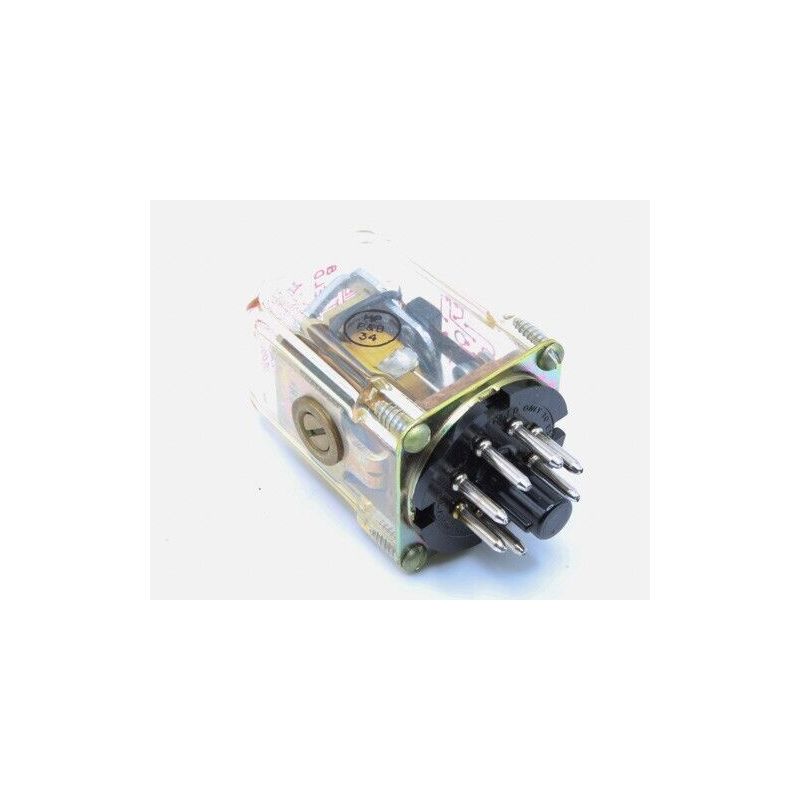

P&B KCP11 10K Potter & Brumfield General Purpose Relay DPDT 2A, 8 Pin Octal Socket Type, W14

Enclosed dust cover DC current sensitive relay 1, 2, and 3 Form C (CO) contact arrangement 8 and 11 pin octal style plugs Operates on 125mW per movable arm Contact Data Contact arrangement 1 form C (CO), 2 form C (CO), 3 form C (CO) Rated voltage 120VAC Rated current 2A Contact material Ag Min. recommended contact load 100mA, 12VDC Initial contact resistance 100mΩ Frequency of operation 360 ops./hour Operate/release time max. 20/10ms Contact ratings Type Load Cycles 1, 2 and 3 pole, Ag 2A, 120VAC 100x103 ops. Mechanical endurance 15x106 ops. Coil Data Coil current range 3.6mA to 12.3mA (DC only) Coil versions, DC Coil Coil Operate Coil Rated coil code current resistance power mADC Ω±10% mW Coil versions, 1 pole 2,500 7.2 2,500 125 5,000 5 5,000 125 10,000 3.6 10,000 125 Coil versions, 2 pole 2,500 10 2,500 250 5,000 7.2 5,000 250 10,000 5 10,000 250 Coil versions, 3 pole 2,500 12.3 2,500 375 5,000 8.7 5,000 375 10,000 6.1 10,000 375 All figures are given for coil without preenergization, at ambient temperature +23°C
