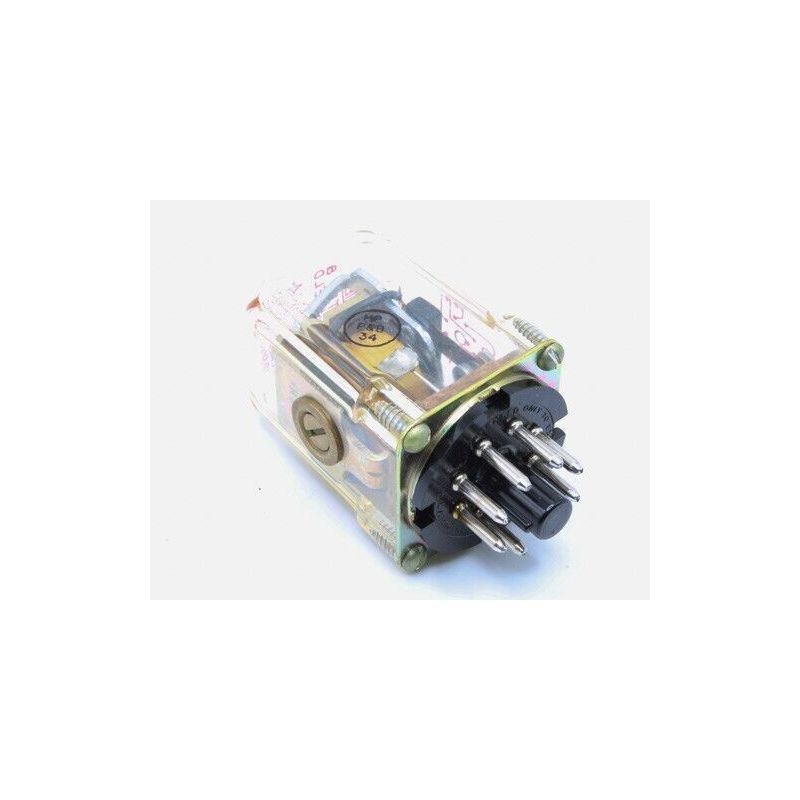

P&B KCP11 2.5K Potter & Brumfield General Purpose Relay DPDT 2A, 8 Pin Octal Socket Type, W17
P&B KCP11 10K Potter & Brumfield General Purpose Relay DPDT 2A, 8 Pin Octal Socket Type, W14
P&B KCP11 5K Potter & Brumfield General Purpose Relay DPDT 2A, 8 Pin Octal Socket Type, W13
n Enclosed dust cover
n DC current sensitive relay
n 1, 2, and 3 Form C (CO) contact arrangement
n 8 and 11 pin octal style plugs
n Operates on 125mW per movable arm
Contact Data
Contact arrangement 1 form C (CO), 2 form C (CO), 3 form C (CO)
Rated voltage 120VAC
Rated current 2A
Contact material Ag
Min. recommended contact load 100mA, 12VDC
Initial contact resistance 100mΩ
Frequency of operation 360 ops./hour
Operate/release time max. 20/10ms
Contact ratings
Type Load Cycles
1, 2 and 3 pole, Ag
2A, 120VAC 100x103 ops.
Mechanical endurance 15x106 ops.
Coil Data
Coil current range 3.6mA to 12.3mA (DC only)
Coil versions, DC Coil
Coil Operate Coil Rated coil
code current resistance power
mADC Ω±10% mW
Coil versions, 1 pole
2,500 7.2 2,500 125
5,000 5 5,000 125
10,000 3.6 10,000 125
Coil versions, 2 pole
2,500 10 2,500 250
5,000 7.2 5,000 250
10,000 5 10,000 250
Coil versions, 3 pole
2,500 12.3 2,500 375
5,000 8.7 5,000 375
10,000 6.1 10,000 375
All figures are given for coil without preenergization, at ambient temperature +23°C
