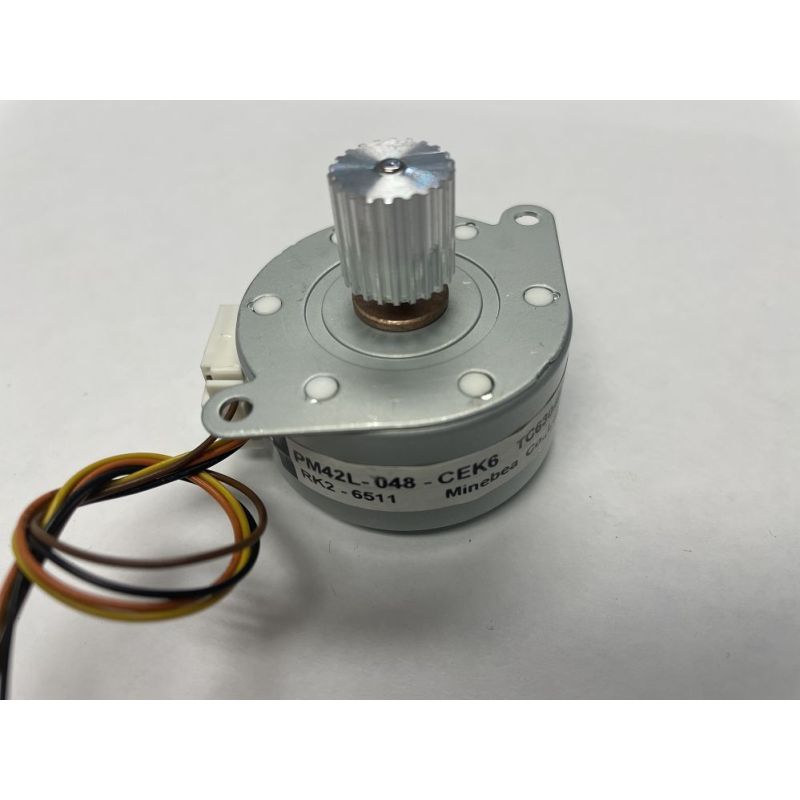

Minebea NMB 24VDC STEPPER MOTOR 600mA 7 Ohm Coil PM42L-048-CEK5

Motor Size PM42L-048 Number of Steps per Rotation 48(7.5°/Step) Drive Method 2-2 PHASE Drive Circuit UNIPOLAR CONST. VOLT / BIPOLAR CHOPPER Drive Voltage 24V Current/Phase * / 600ma Coil Resistance/Phase 60 Ohm / 7 Ohm Drive IC 2SC3346 / UDN2916B-V Magnet Material: Ferrite plastic magnet (MSPL) Polar anisotropy ferrite sintered magnet (MS50) Nd-Fe-B bonded magnet (MS70) Insulation Resistance 100M[Ω] MIN Dielectric Strength AC 500[V] 1[min] Class of Insulation Class E Operating Temp. -10[°C] ~ 50[°C] Storage Temp. -30[°C] ~ 80[°C] Operating Hum. 20[%] RH ~ 90[%] RH
