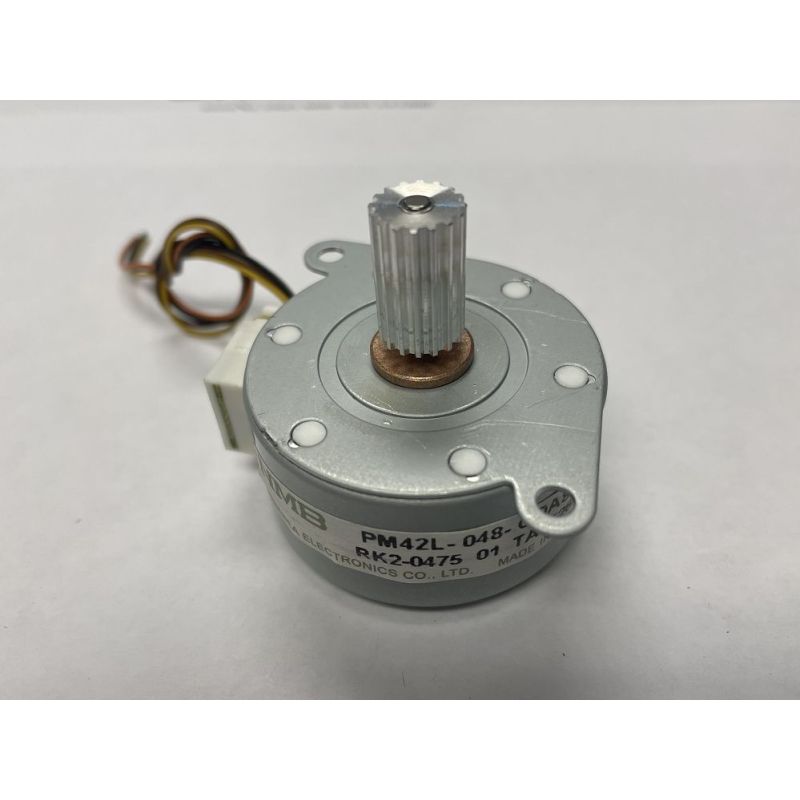

Minebea NMB 24VDC STEPPER MOTOR 600mA 7 Ohm Coil PM42L-048-CEK5
Minebea NMB 24VDC STEPPER MOTOR 600mA 7 Ohm Coil
Motor Size PM42L-048
Number of Steps per Rotation 48(7.5°/Step)
Drive Method 2-2 PHASE
Drive Circuit UNIPOLAR CONST. VOLT / BIPOLAR CHOPPER
Drive Voltage 24V
Current/Phase * / 600ma
Coil Resistance/Phase 60 Ohm / 7 Ohm
Drive IC 2SC3346 / UDN2916B-V
Magnet Material:
Ferrite plastic magnet (MSPL)
Polar anisotropy ferrite sintered magnet (MS50)
Nd-Fe-B bonded magnet (MS70)
Insulation Resistance 100M[Ω] MIN
Dielectric Strength AC 500[V] 1[min]
Class of Insulation Class E
Operating Temp. -10[°C] ~ 50[°C]
Storage Temp. -30[°C] ~ 80[°C]
Operating Hum. 20[%] RH ~ 90[%] RH
Item# PM42L-048-CDA8
