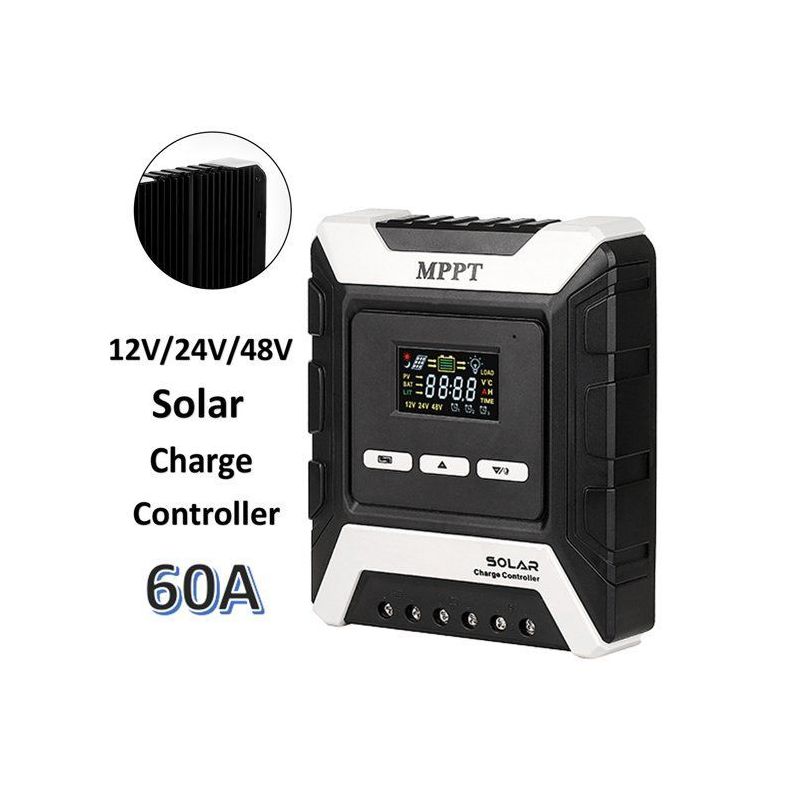

60A MPPT AUTO Solar Charge Controller Charger For 12V / 24V / 48V Lead-acid LiFePO4 Lithium Battery
Intelligent MPPT Solar Charge Controller is the maximum power point tracking solar charge controller, which has the max power point target function, is suitable to be used in the battery or battery pack solar energy charging and load charging control. It is suitable for grid solar energy system with wide voltage. Solar charge controller is the core control part of the whole photovoltaic power supply system.
Type: MPPT
Voltage: 12V,24V,48V Auto Adaption
Current: 60A
Application: Charger Controller, Lighting Controller, Solar System Controller
LED color LCD Display.
· Wide voltage & current.
· Heat dissipation is good.
· Automatic battery identification system
· The maximum current tracking means fast charging, saving money.
· The side can be detachable, hidden line interface, safe, beautiful to look at, leakage prevent.
· Tooth mark aluminum alloy bottom plate, easy to heat dissipation, prolong the service life of the product
· When overcharge, deep discharge, short circuit, battery opening, overheating temperature, battery overvoltage · and overcurrent, the controller will automatically turn off, and protect battery and power system.
RSMPPT60
Current 60A
Max PV Power 2880W
Max PV Voltage 90V
Battery Type Sealed batteries
Float Charge 57.6V
Discharge Stop 46V
Discharge Reconnect 60V
USB Output 5V/2A , USB*2
Operating Temperature -20℃~+40℃
Application Charger Controller, Solar PV System Controller, Lighting Controller
Certificate ROHS,CE,ISO9001,ISO14001
MPPT Product Size(CM) 19.3*22.7*5.8
System Voltage 48V Auto Adaption
Max Solar Power Input 2880W
Module Current Max. 60A
