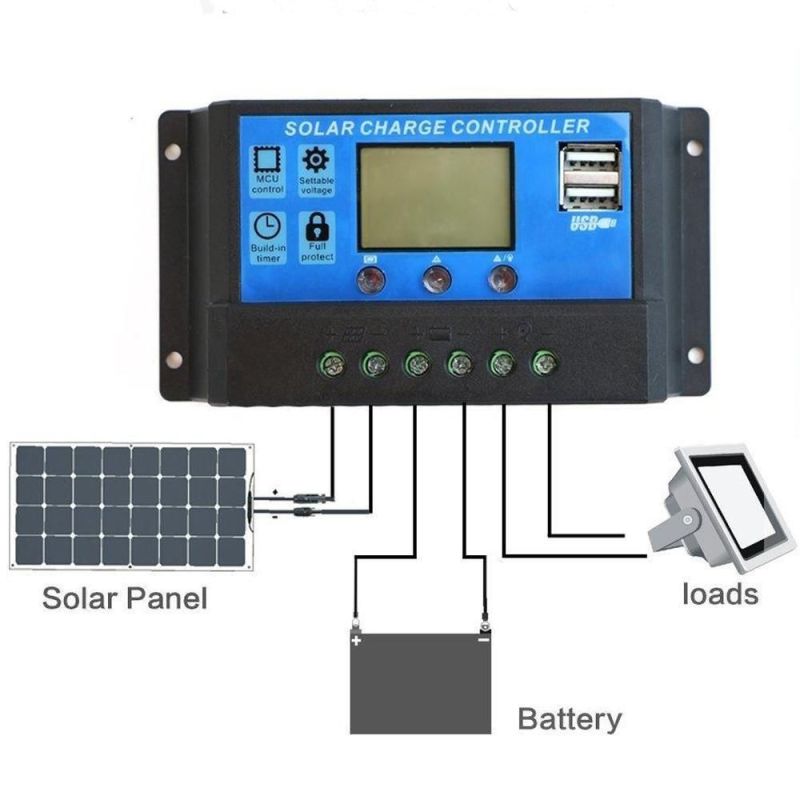

12/24VDC 10A VOLTAGE CHARGE CONTROLLER FOR SOLAR
Intelligent PWM 10A Solar Panel Regulator Charge Controller 12V / 24V 120W/240W
This controller can only be used on lead-acid batteries,
Features:
Build-in industrial mirco controller
Intuitive 25%-100% power indicator
Fully 4-stage PWM charge management
Reverse current protection, low heat production
Build-in short-circuit protection, open-circuit protection,reverse protection, over-load protection
Specification:
12V battery can only access 18V-20V solar panels
24V battery can only access 36-40V solar panels
10A (12V120W (MAX) 24V/240W(MAX) )
Batt voltage: 12V/24V Auto Adapt
Current:10A
Max solar input: 41V
Charge drop: <0.2V
Disharge drop: <0.25V
Equalization: 14.6VBulk: 14.4V
Acceptance: 14.2V PWM
Float: 13.8V
Charge reconnect: 13V
Disharge stop: 10.8V
Disharge reconnect: 12.6V
Self-consume: <10mA
Voltage of open light: Solar panel 8V(Light lights delay)
Voltage of close light: Solar panel 8V(Light off delay)
Temperature compensation: N/C
Operating temperature: -35℃~60℃
Size: 134x70x32mm(Length,Height,Thickness
