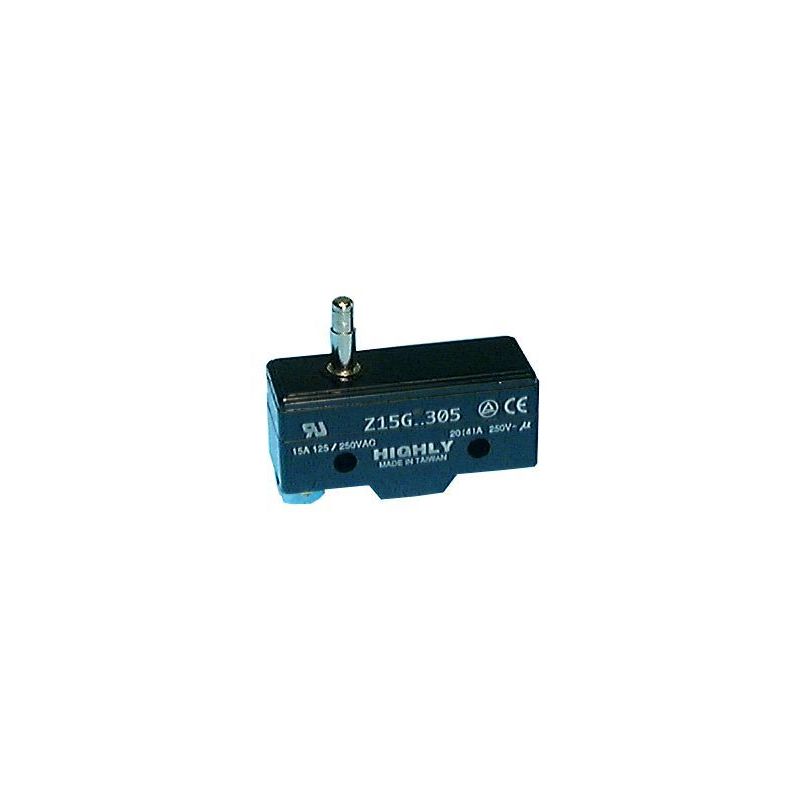

Philmore 30-18144 HEAVY DUTY Switch SPDT 15A 125-250V with Extended Pin Plunger HIGHLY Z15G1305 BZ-3RST04 HBS2KCS 2HBQ-5
SPECIFICATIONS:
Current Rating: 15A@ 125/250V AC
1/2A@ 125V DC, 1/4 HP @ 250V DC
1/8 HP @ 125V AC, 1/4 HP @ 250V
AC
Initial Contact Resistance: 15 Meg ohm (Max.)
Insulation Resistance: 500V DC 1000 Meg ohm (Min.)
Dielectric Strength: 1000V AC for 1 Minute
Contact Material: Silver
Terminal Material: Brass - Silver Plate
Terminal Type: Screw
SPECIFICATIONS:
OF Max.: 250-350g
RF Min.: 114g
PT Max.: 0.4mm
OT Min.: 0.13mm
MD Max.: 0.05mm
OP: 5.9 + 0.4mm
Item# 30-18144B
$9.49
Availability:
In stock
- Buy 25 for $7.58 each and save 20%
- Buy 100 for $6.50 each and save 32%
