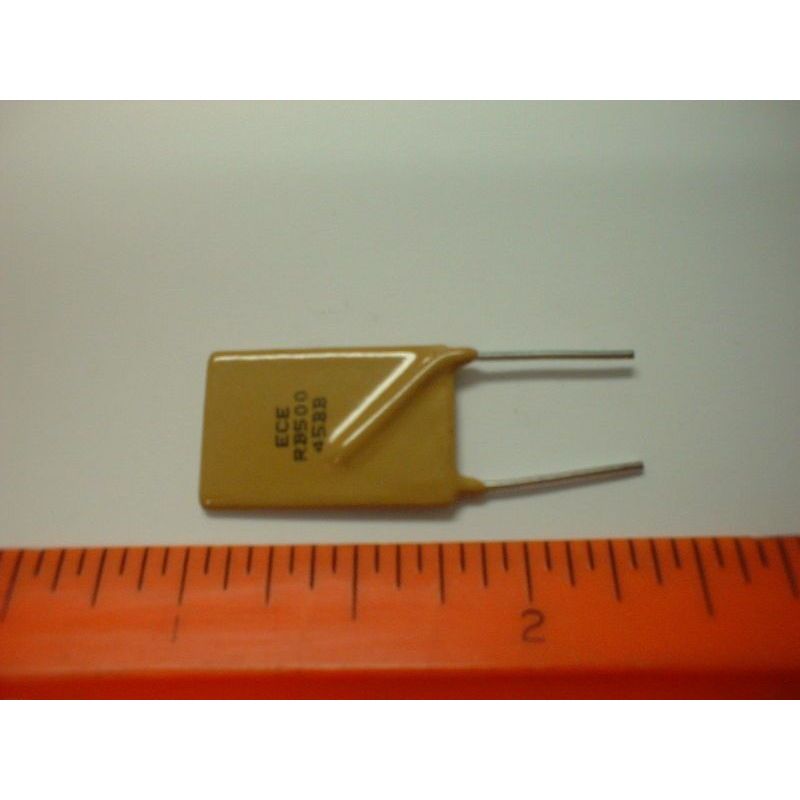

ECE RB500-30 Holds 5A, Trips 10A, Auto Resetting Breaker, Switch Cutoff, Fuse, PTC

SPECIFICATION Manufacturer ECE Type of fuse PTC polymer Current rating 5A Max surge current 40A Switched current 10A Max. voltage 30V DC Fuse size 14x24.9mm Power 3W Min. resistance 10mΩ Max resistance 50mΩ Terminal pitch 10.2mm A dimension 14mm B dimension 24.9mm C dimension 10.2mm D dimension 7.6mm E dimension 3mm F dimension 1.2mm Operating temperature -40...85°C
