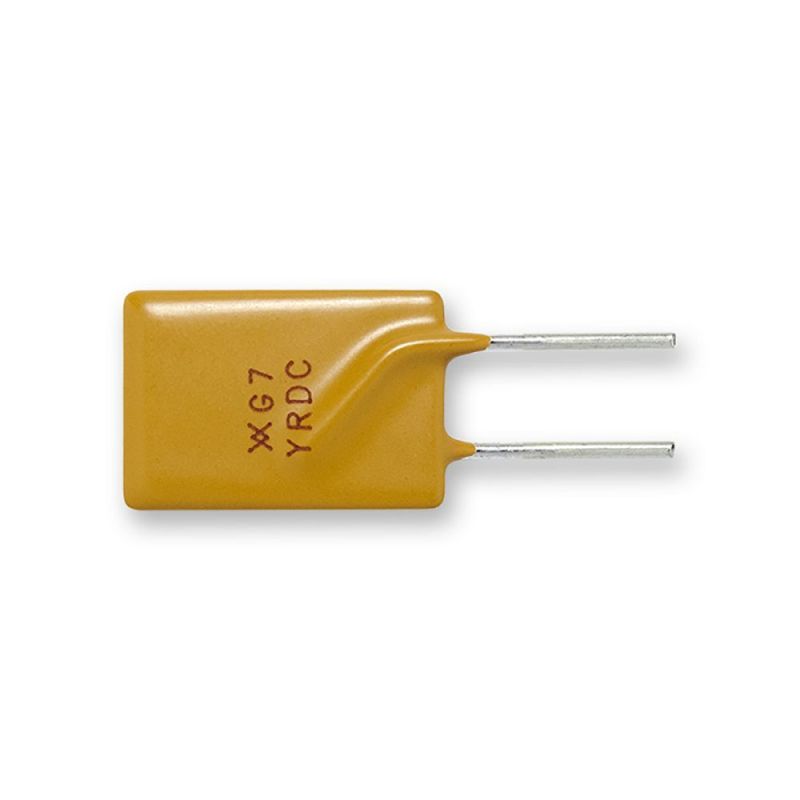

Polymeric PTC Resettable Fuse 16V 7 A Ih Through Hole Radial, Disc
Features & Benefits:
Resettable and single-use overcurrent devices
Wide range of form factor and termination methods
Devices compatible with high-volume electronics assembly.
Hold Current (A) 7
Trip Current (A) 11.9
Max Fault Current Rating (A) 100
Minimum Resistance (RMIN) (Ohms) 0.0077
Resistance (Max) Ω 0.0131
Max Resistance (R1max) (Ohms) 0.02
Max Time to Trip Time (Sec) 3.5
Power Dissipation (Typical) WATT 3
Maximum Operating Temperature 85C
