RELAY-10AMP DPDT 12VAC 8-PIN OCTAL
RELAY-10AMP 3PDT 24VAC 8-PIN OCTAL
RELAY-10AMP DPDT 120VAC 8-PIN OCTAL
R02 Series
Features
Hermetically Sealed, Metal Enclosure Types (H−suffix)
U/L Approved for Class 1, Div 2 Hazardous Locations (H−suffix)
Push−to−Test Button Types (B−suffix)
Mechanical Indicator Types (M−suffix)
Indicator Lamp Types (N−suffix)
8−Pin and 11 −Pin Octal Plug−In Types
SPDT, DPDT and 3PDT Types
Clear Plastic Dust Cover.
Electrical Specifications
Contact
Contact Rating
Poles 120VAC 240VAC 28VDC Max
SPDT 10A (1/10 HP) 10A (1/6 HP) 6A
DPDT 10A (1/3 HP) 10A (1/3 HP) 10A
3PDT 10A (1/3 HP) 6A (1/2 HP) 6A
Contact Material: 3/16” Silver cadmium oxide
Contact Resistance: 0.050 ohms max initial
Coil
Coil Voltages: See Chart
Pick−up Voltage: 80% of nominal or less, DC
80% of nominal or less, AC
Resistance: See chart
Min Sensitivity: (125mW per pole)
Duty Cycle: Continuous
Operational Characteristics
Timing Values . . . . . Operate Time: 25 mS or less
Release Time: 20 mS or less
Insulation Characteristics
Dielectric Strength
Contact To Coil: 1500 VRMS
Across Open Contacts: 1000 VRMS
Pole to Pole: 1500 VRMS
Contacts To Frame: 1500 VRMS
Insulation Material: Molded polyester
Insulation Resistance: 1 x 103 megohms min
Environmental Characteristics
Operating: −10 C to +50 C (AC), −10 C to +60 C (DC)
Non−operating (storage): −30 C to +105 C
Weight
Std: 31/2 ozs (99.2 grams)—typical
Hermetic sealed: 5 ozs (141.7 grams)—typical
MOUNTING SOCKETS
STYLES DESCRIPTION
NTE
TYPE NO.
SURFACE MOUNT 8−PIN OCTAL
11−PIN OCTAL
R95−101
R95−104
DIN RAIL MOUNT 8−PIN OCTAL
11−PIN OCTAL
R95−113, R95−181
R95−114, R95−182
PANEL MOUNT 8−PIN OCTAL
11−PIN OCTAL
R95−118
R95−119

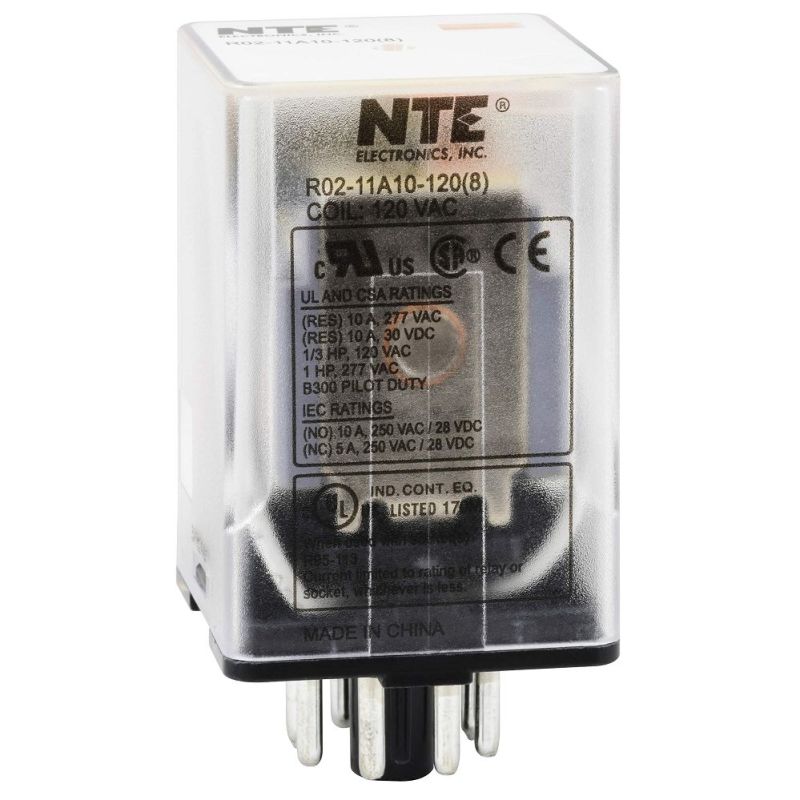

Item# R02-11A10-120
